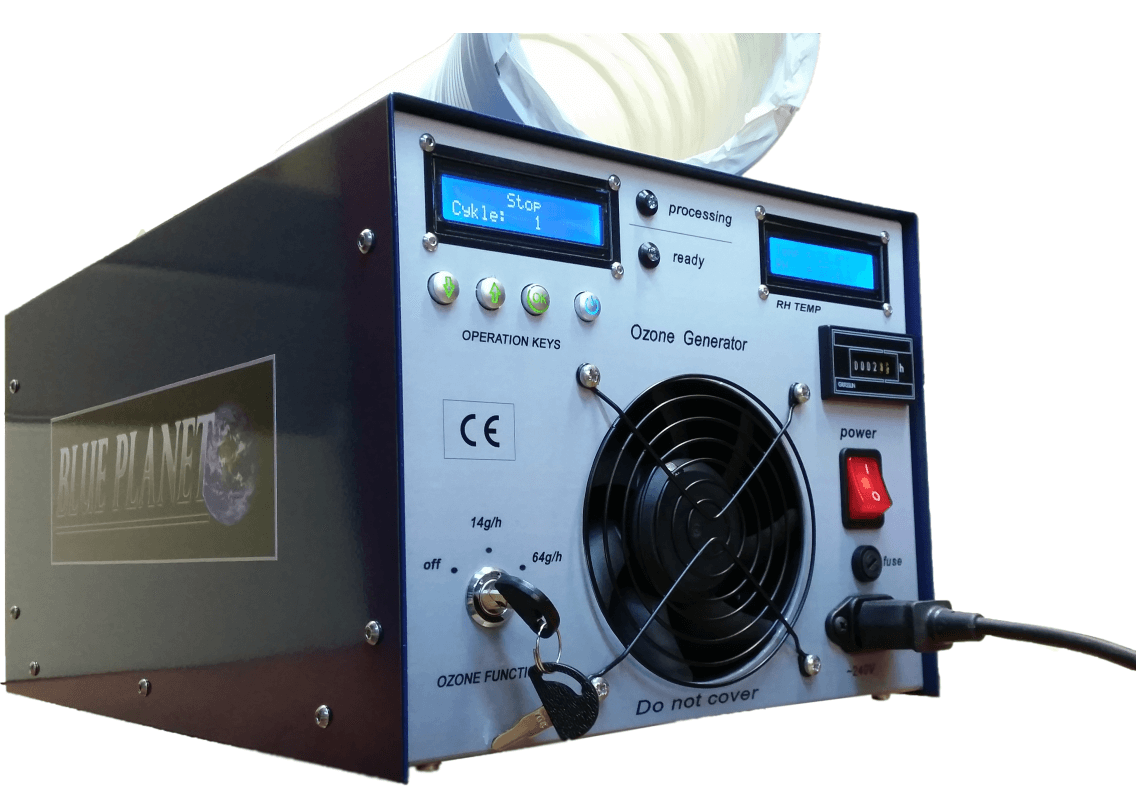

Ozone generator DS-64-RHR 64g/h Industrial ozonator

ozonator DS-64-RHR


DS-64-RHR Industrial Ozone Generator - is one of the most effective ozonators on the Polish and European market. It is designed for ozonation of: food production halls, warehouses, cold stores, stationary ventilation systems, industrial air conditioning systems, fumigation of basements, attics.

Main product features:

  • Microprocessor control
  • USA technology (waterproof ozone mesh electrodes with a heat sink)
  • Impact and transport resistant electrodes
  • The function of extracting ozone from rooms
  • hygrometer / thermometer built into the front panel
  • The settings visible on the display are confirmed by a sound signal
  • Key protection against unauthorized activation
  • Short-circuit and electric shock protection
  • Hour meter (useful for billing in a tool rental)
  • Adjustable power in the range of 14000mg / h or 64000mg / h
  • Ozone flow within 421 m3 / h (rooms up to 1800m3)
  • Work time programming from 1min-9h
  • Cyclical program (work, pause, cycles)
  • Signaling program end with a light and sound signal
  • Durable stainless steel, aluminum and powder coated steel construction
  • lifetime warranty with annual servicing (TU service cost)
  • 120mm outlet connection for sleeve / pipe when ozone is transferred to another location
  • The letter R in the name of the generator means the outlet flange to which the remote ozonation pipe can be connected. The diameter of the collar is 120mm


  • Method - corona discharge
  • Supply gas - air
  • Cooling - air
  • Dimensions - 470/250 / 250mm
  • Weight - 8.5 kg
  • Power supply - 230V 50Hrz
  • Power consumption - 580W max
  • Housing - aluminum / stainless and acid resistant steel
  • Working time - no limit
  • Capacity - 64 g / h
  • Ozone flow - 421 m 3
